UNICARRIERS SCX30N-SCX40N

SCX30N-SCX40N-Electric Stand-up Counterbalanced3,000 - 4,000 Lb

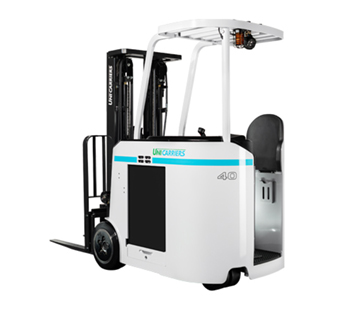

UniCarriers SCX N2 Series Electric Stand-Up Counterbalance Forklift (3,000 – 4,000 lb. Capacity)

Built for fast dock-to-stock workflows, narrow aisles, and cold storage.

The UniCarriers SCX N2 Series (SCX30N2, SCX35N2, and SCX40N2) is a 36V AC-powered stand-up rider forklift made for operators who step on and off the truck all day. With a compact chassis, zero-radius turning, and a spring-loaded operator compartment, it delivers high throughput without wearing out your crew.

Download Brochure Request a Quote Call (616) 455-2376


SCX-LoadingTruck SCX-Unloading Rack SCX-Warehouse Floor SCX-Cover


Why Warehouse Managers Choose the SCX N2 Series

  • Ultra-Tight Maneuverability: Dual individually controlled AC drive motors let the truck turn within its own footprint, making it easy to navigate crowded loading docks and narrow aisles.
  • All-Day Operator Comfort: A low 9.4-inch step height and wide entry reduce fatigue during frequent mount/dismount cycles. Inside, a spring-loaded, dampened floorboard absorbs dock-plate shocks, while the padded backrest and armrest adjust electronically up to 4 inches.
  • Built-In Load & Operator Safety: Intelligent Curve Control automatically slows the truck when taking corners too fast, while Ramp Hold prevents rollback on inclines. Automatic steer centering also aligns the drive tire straight ahead at startup so the truck won’t jog sideways.
  • Customizable Power & Low Maintenance: Switch between three factory-set performance modes (or program your own) to match operator skill levels. Brushless AC drive and hydraulic motors reduce wear and extend service intervals.
  • Cold Storage Ready: Ideal for coolers, freezers (with available cold-storage packages), food distribution, and high-turn retail warehousing.

Model Comparison & Specifications

Specification SCX30N2 SCX35N2 SCX40N2
Load Capacity 3,000 lbs 3,500 lbs 4,000 lbs
Power System 36V AC 36V AC 36V AC
Max Fork Height (Standard) 188 in (15.7 ft) 188 in (15.7 ft) 188 in (15.7 ft)
Length to Fork Face 63 in 65 in 70 in
Chassis Width 41 in 41 in 41 in
Overhead Guard Height 88 in 88 in 88 in
Gross Truck Weight 8,424 lbs 8,424 lbs 9,244 lbs

(Note: Optional lower overhead guards and extended mast heights are available to fit low-clearance trailers or high-bay racking.)

Request info about SCX Series

Tags: unicarriers stand up forklift electric forklift smallcap narrow aisle
